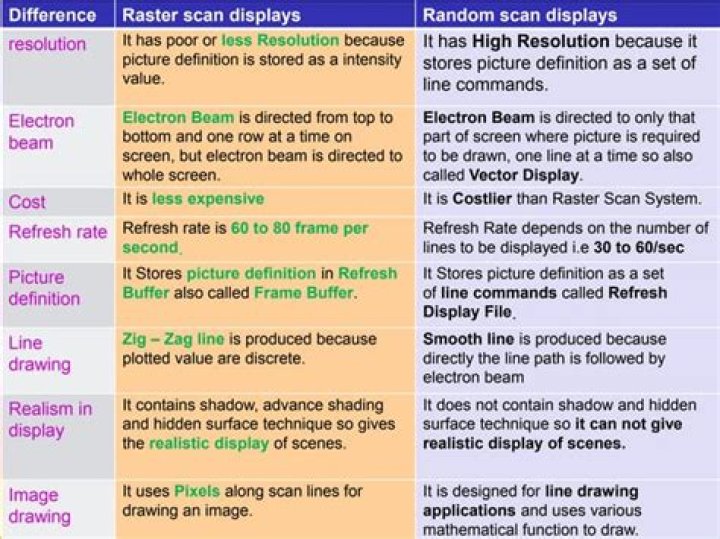

Differences Between A Raster Scan And A Random Scan Display

Raster scan and random scan displays are types of video displays used to render and display an image or text on a screen. Currently, the majority of video displays that are used have raster scan technology, and while random scan displays are less common, they are still used in some applications.

Definition of a Raster Scan

A raster scan, also known as a raster scan monitor, is a type of video display that uses electrons to draw patterns or lines on a phosphor screen. To create an image, the electrons scan the screen in horizontal rows from the top to the bottom until they reach the end of the screen. The lines are then reset to the top, and the process repeats until the image has been completely rendered.

Raster scans are widely used because the technology is simple and effective at displaying complex images. They can display both text and images, and with modern technology, can produce high-resolution screens with sharp images.

Definition of a Random Scan

A random scan is a type of video display that works by drawing on the monitor directly. Instead of drawing each line in a raster pattern, the beam can move in any direction to draw the images. This allows for sharper images with more detail and smoother curves and lines. While random scan displays are able to create complex images easily, they usually require dedicated hardware and software to run, and can be more expensive than a raster scan.

Random scan displays can also draw at different speeds. This means that an image can be drawn more quickly than in a raster scan, since it requires less time to redraw the same image each time. However, the image is not as stable as a raster scan, since there can be some flicker or noise when the monitor has difficulty keeping up with the speed of the beam.

Speed of the Scans

One of the biggest differences between a raster scan and a random scan is the speed at which the image is drawn on the monitor. Due to its raster scanning pattern, a raster scan needs to move from one row of lines to the next in order to draw the image. This process can take longer and can be more prone to errors and noise. A random scan, on the other hand, is able to draw more quickly, since the beam can move in any direction to draw the image.

This difference in speed has led to random scan monitors being favored in applications that need to display high resolution or complex images that need to be drawn quickly. However, raster scan monitors are still the preferred choice in many applications, due to their cost and relative simplicity.

Refresh Rate of a Display

Another key difference between a raster scan and a random scan is the refresh rate of the display. The refresh rate refers to the number of times a screen is redrawn per second, and is a measure of how often the image on the screen will flicker or appear to be distorted. A raster scan’s refresh rate is typically higher than a random scan, since it is more efficient and quicker at producing an image than the random scan.

The refresh rate of a display is important for applications that require a stable display. For example, in video games and other applications that require quick reactions and high accuracy, a higher refresh rate is needed in order to ensure that the image is stable and that the user can quickly react to any changes on the screen.

Cost of the Scans

The cost of a raster scan is usually cheaper than a random scan due to its widespread usage and relative simplicity. With the current technology, a raster scan is able to create a clear and sharp image at a fraction of the cost of a random scan. Furthermore, raster scan monitors have fewer requirements when it comes to dedicated hardware and software, so they are generally cheaper to purchase.

Random scan monitors, on the other hand, can be more expensive due to the dedicated hardware and software needed to run them. The cost of these components also affects the overall cost of the monitor, so it is usually only used in applications where a higher resolution or more detail is needed.

Inputs for Scans

Raster scan monitors typically use either analog or digital input signals. Analog signals, such as those from a VGA cable, are used to create images from analog signals such as from a camera or a broadcast signal. Digital signals, such as those from a HDMI cable, are used to create images from digital sources such as a computer or a DVD player.

Random scans usually need dedicated hardware or software in order to process the input signal. The hardware or software is then used to draw the image on the monitor, and this can be more expensive than using analog or digital signals for a raster scan.

Resolution of Scans

Raster scan monitors are capable of producing images with a high resolution, which means that they can display more detail. Modern technology has increased the resolution of raster scans, so they are able to produce sharp and detailed images without any distortion.

Random scans are able to produce higher resolution images due to their ability to draw in any direction. This means that complex shapes, curves, and objects can be easily rendered, giving a higher level of detail. However, the refresh rate of a random scan monitor is usually lower than a raster scan, so there is some flicker or noise when the speed of the image is too fast for the monitor to keep up.

Conclusion

Raster scan and random scan monitors both have their advantages when it comes to displaying images. Raster scan monitors are cheaper and simpler to operate, but they are limited by their raster scanning pattern, which can cause noise or flickering on the screen. Random scan monitors, on the other hand, can produce sharper images and smoother curves, but require dedicated hardware and software, and are often more expensive.

In conclusion, it is important to understand the differences between a raster scan and a random scan in order to select the right display for the application. By understanding the pros and cons of each technology, one can make an educated decision on which type of monitor is the best for their needs.
